Garrett ACE 300 vs ACE 400: What's Actually Different
CoilAndCoin is reader-supported. If you buy through our links we may earn a commission at no extra cost to you. As an Amazon Associate we earn from qualifying purchases. Disclosure.
The ACE 300 and 400 look almost identical. Here's what Garrett's own pages and manual say is different. We haven't tested them.
Side by side (Garrett's specs)
| ACE 300 | ACE 400 | |
|---|---|---|
| Frequency | 8 kHz, adjustable | 10 kHz, adjustable |
| Coil | 7 x 10 in. concentric | 8.5 x 11 in. DD |
| Iron Audio | No | Yes |
| Digital Target ID | Yes | 0-99 scale |
| Weight | 2.8 lb | 2.9 lb |
| Batteries | 4 AA (included) | 4 AA (included) |
The ACE 400 manual lists five modes (Zero-Disc, Jewelry, Custom, Relics, Coins) and four small frequency adjustments (F1 to F4) to deal with interference. Garrett's own summary of the 400's extras: Iron Audio, a DD coil, a higher frequency and volume-control headphones.
What the differences mean
- Frequency. Garrett says higher frequencies are better at picking up small or low-conductivity targets, while lower ones do better at depth and on highly conductive metal.
- Iron Audio. On the 400 you can hear iron rather than having it silently discriminated out, which helps you judge a spot with iron and good targets mixed together.
- Water. The ACE 400 manual says the searchcoil is submersible but the control housing and connectors are not. Garrett's ACE 300 page doesn't state waterproofing; its listing title mentions a waterproof coil.
The two detectors
Garrett ACE 300 Metal Detector
- Digital Target ID, 0-99 scale, per the listing
- Electronic pinpointing (non-motion All-Metal mode)
- Adjustable frequency to reduce interference
- Searchcoil cover included; title lists a waterproof coil
Garrett ACE 400 Metal Detector
- Digital Target ID, 0-99 scale, per the listing
- Iron Audio to hear iron before you dig
- Electronic pinpointing; adjustable frequency
- Searchcoil cover included
Below and above: ACE 200 and ACE Apex
ACE 200: a 0-99 Target ID, a 6.5 x 9 inch waterproof concentric coil (control box not waterproof), under 3 pounds, per the listing.
Garrett ACE 200
- Digital Target ID, 0-99, per the listing
- 6.5 x 9 in. waterproof concentric coil; control box is not waterproof
- Under 3 lb; adjustable stem
- 4 AA batteries; 3-year limited warranty

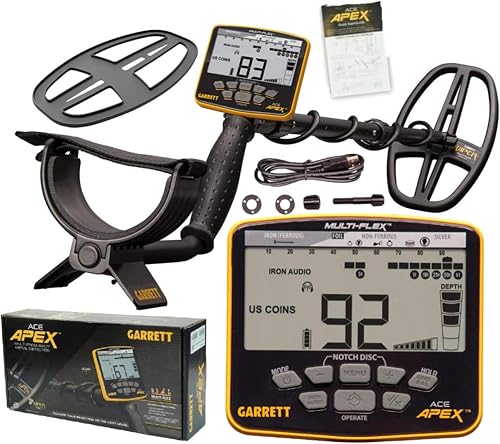

ACE Apex: adds selectable 5, 10, 15 and 20 kHz plus Multi-Frequency and Multi-Salt modes, a 6 x 11 inch DD coil, Z-Lynk wireless and a rechargeable battery, at 2.5 pounds, per the listing.
Garrett ACE Apex Metal Detector
- 5, 10, 15 and 20 kHz plus Multi-Frequency and Multi-Salt modes, per the listing
- 6 x 11 in. DD Viper searchcoil; waterproof coil per the title
- Z-Lynk wireless ready; iron volume control
- Built-in rechargeable battery; listed at 2.5 lb
Add-ons
Both ACEs come with a searchcoil cover, per the listings. A pinpointer is a common add-on; Garrett's Pro-Pointer AT is submersible to 20 feet. See our pinpointer guide.
Garrett Pro-Pointer AT
- Submersible to 20 ft, per the listing
- 3 sensitivity levels; fast retune
- One-button control; stealth mode
- Molded inch/cm ruler; lanyard loop
Want a pinpointer in the box? The bundles pair each ACE with one. Comparing against Minelab? See ACE 400 vs Vanquish 540.
Garrett ACE 300 Bundle with Pro-Pointer AT
- ACE 300 with 0-99 Target ID, per the listing
- Includes Pro-Pointer AT (waterproof to 20 ft) and coil cover
Garrett ACE 400 Bundle with Pro-Pointer II
- ACE 400 with Iron Audio and 0-99 Target ID, per the listing
- Includes Pro-Pointer II, carry case and coil cover
FAQ
What's the difference?
The 400 has 10 kHz, a DD coil and Iron Audio.
Is the ACE 400 waterproof?
Only the coil, per Garrett's manual.
What is Iron Audio?
A way to hear discriminated iron instead of ignoring it.
